Our Products

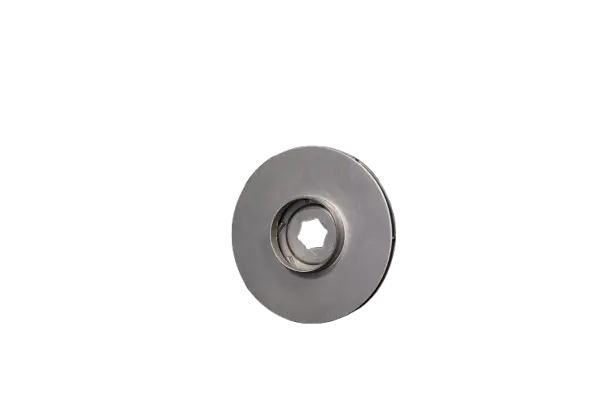

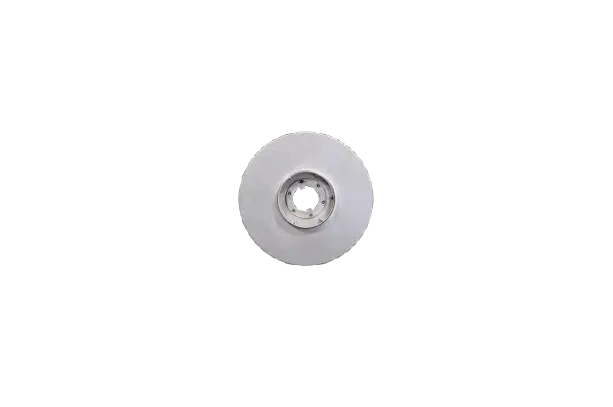

IMPELLER 2 SERIES

  • Material : SS304(SS316 On request)
  • Suitable for : Double D, Spline, Hex shafts
  • Outer dia : 90mm
  • Rated flow : 2m3/Hr

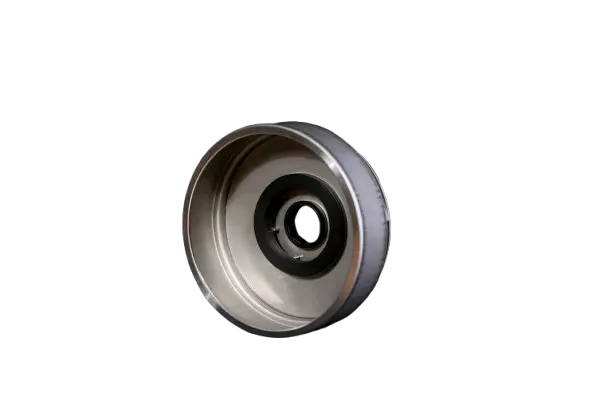

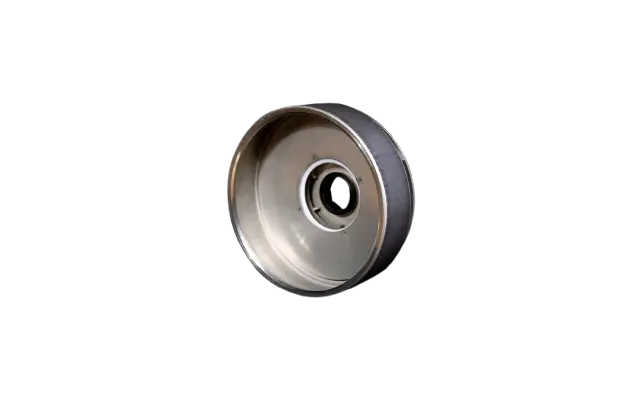

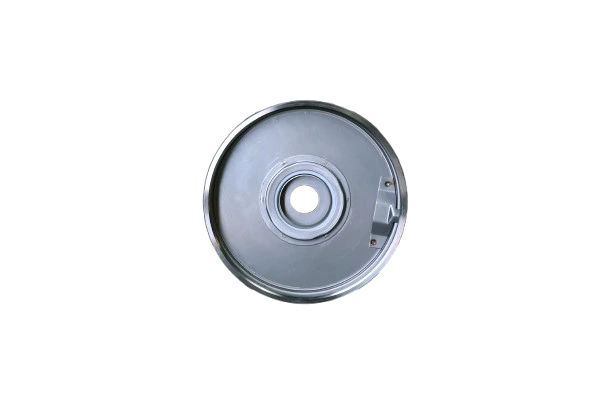

CHAMBER 2 SERIES

  • Material: SS304/PTFE
  • Length : 18mm
  • Outer Dia : 110mm

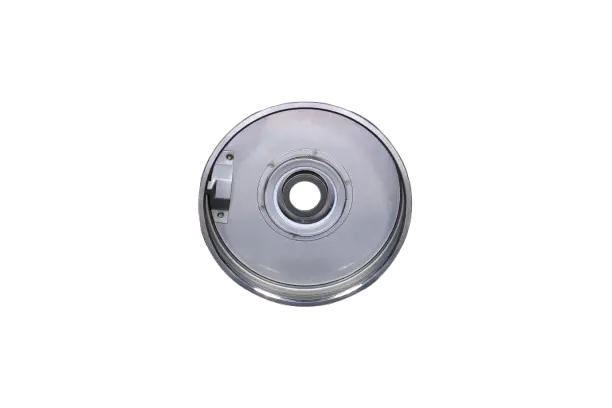

BEARING CHAMBER 2 SERIES

  • Material : SS304/PTFE
  • Bush : Sic / TC
  • Inner Dia: 16mm/ 17.5mm

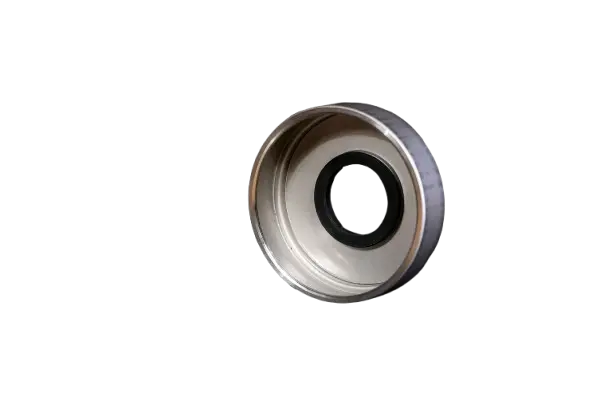

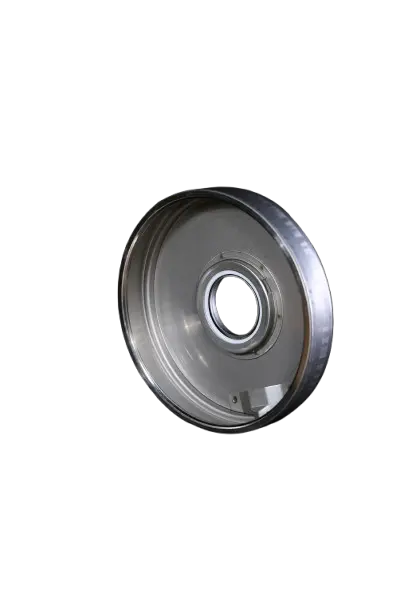

BOTTOM CHAMBER 2 SERIES

  • Material: SS304/PTFE
  • Suitable for: MVC2 , CR2 , CDL2
  • Outer Dia : 110mm

IMPELLER 3 SERIES

  • Material : SS304(SS316 On request)
  • Suitable for : Double D, Spline, Hex shafts
  • Outer dia : 90mm
  • Rated flow : 2m3/Hr

CHAMBER 3 SERIES

  • Material: SS304/PTFE
  • Length : 18mm
  • Outer Dia : 110mm

BEARING CHAMBER 3 SERIES

  • Material : SS304/PTFE
  • Bush : Sic / TC
  • Inner Dia: 16mm/ 17.5mm

BOTTOM CHAMBER 3 SERIES

  • Material: SS304/PTFE
  • Suitable for: MVC3 , CR3 , CDL3
  • Outer Dia : 110mm

IMPELLER 4 SERIES

  • Material : SS304(SS316 On request)
  • Suitable for : Double D, Spline, Hex
  • Outer dia : 95mm
  • Rated flow : 4m3/Hr

CHAMBER 4 SERIES

  • Material: SS304/PTFE
  • Length : 27mm
  • Outer Dia : 110mm

BEARING CHAMBER 4 SERIES

  • Material : SS304/PTFE
  • Bush : Sic / TC
  • Inner Dia: 16mm/ 17.5mm

BOTTOM CHAMBER 4 SERIES

  • Material: SS304/PTFE
  • Suitable for: MVC4 , CR4 , CDL4
  • Outer Dia : 110mm

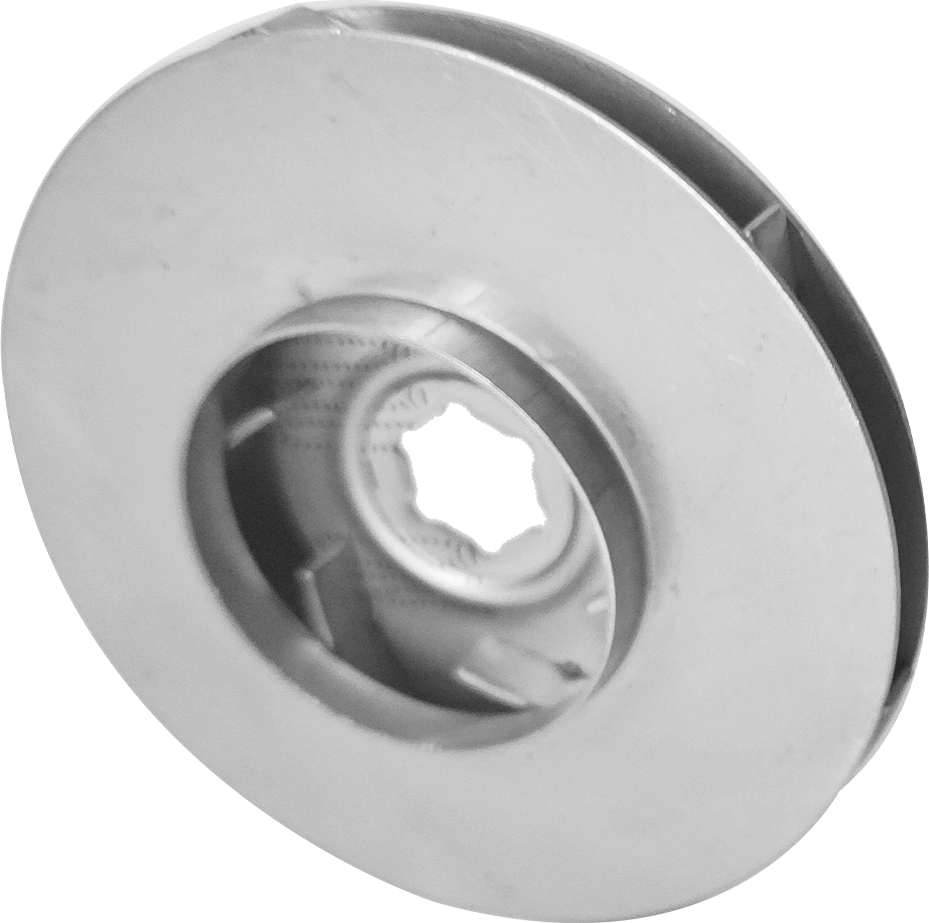

IMPELLER 5 SERIES

  • Material : SS304(SS316 On request)
  • Suitable for : Double D, Spline
  • Outer dia : 73mm
  • Rated flow : 5m3/Hr

CHAMBER 5 SERIES

  • Material: SS304/PTFE
  • Length : 27mm
  • Outer Dia : 110mm

BEARING CHAMBER 5 SERIES

  • Material : SS304/PTFE
  • Bush : Sic / TC
  • Inner Dia: 16mm/ 17.5mm

BOTTOM CHAMBER 5 SERIES

  • Material: SS304/PTFE
  • Suitable for: MVC5 , CR5 , CDL5
  • Outer Dia : 110mm

MECHANICAL SEAL

  • Material : Sic/ Sic Or TC/TC
  • Available for : 12mm and 16mm Shafts
  • Cartridge Type

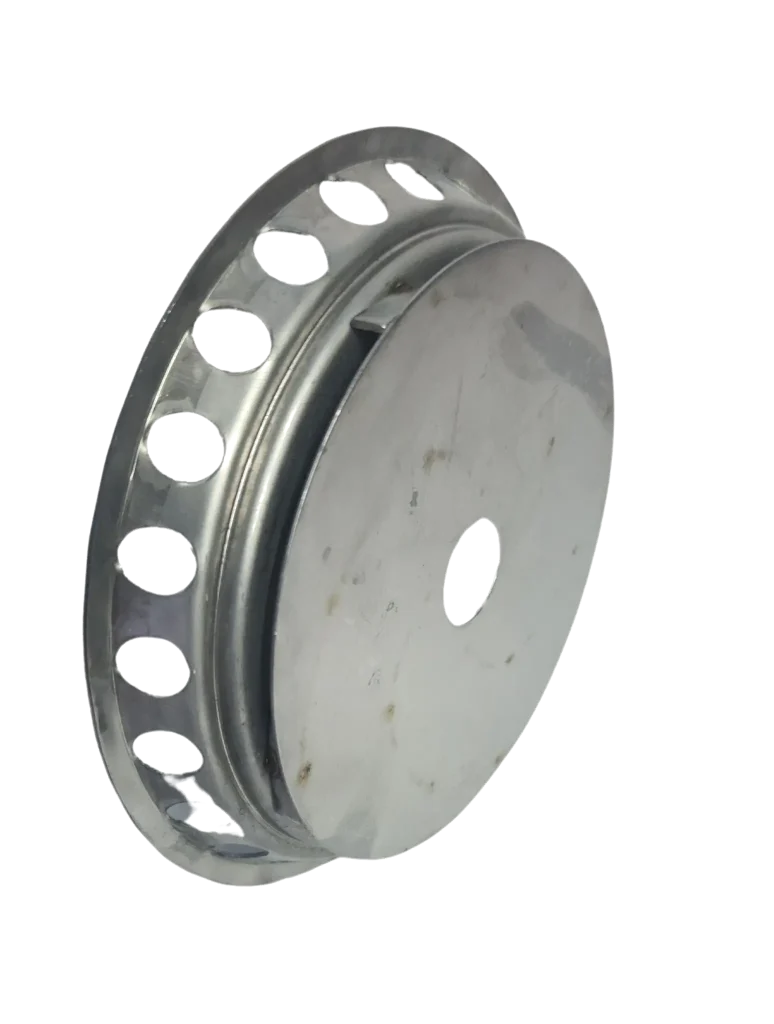

TOP CHAMBER

  • Suitable for: 2 , 3 and 4 series
  • Length : 21mm( 22mm)
  • Outer Dia : 128mm

COUPLING

  • Suitable for: 2 , 3 , 4 and 5 series Pumps
  • Fitted with drive pin and Screws
  • Rugged Construction

LOCK WASHER AND STOPPER

  • Material: SS304
  • Suitable for: Double D shafts
  • Preciously wire cut to avoid slip

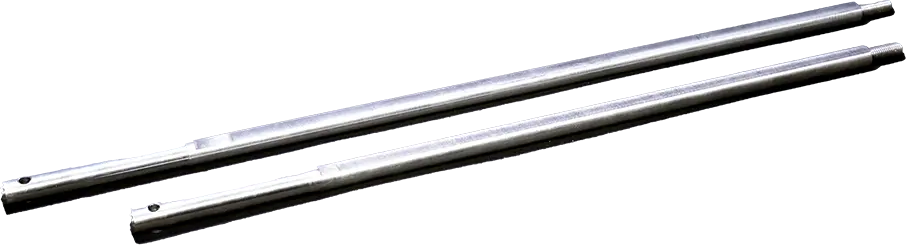

PUMP SHAFTS

  • Material: SS304
  • Available for : MVC AND CDL Models
  • Size : Dia 12.5 X 10A/F

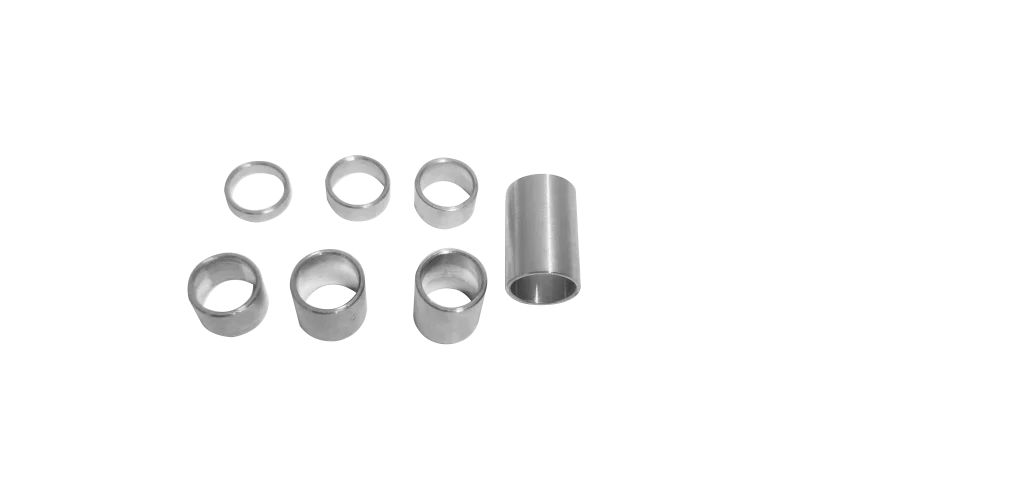

SLEEVES

  • Material: SS304
  • Outer dia : 15mm and 17mm
  • Length : 4mm to 26mm

SHAFT TC BUSH

  • Material: Tungsten Carbide
  • Length : 11mm
  • Outer dia: 16mm and 17.5mm
  • Suitable for: Double D, Spline & Hex Shafts

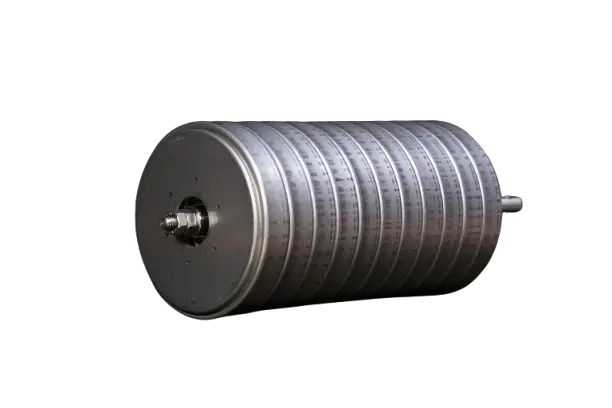

CHAMBER STACK - 2 SERIES

  • Material: SS304( SS316 On request)
  • Available for: 2/11, 2/13, 2/15 , 2/18 and 2/22
  • Bush : Sic/ TC
  • Rated flow : 2m3/Hr

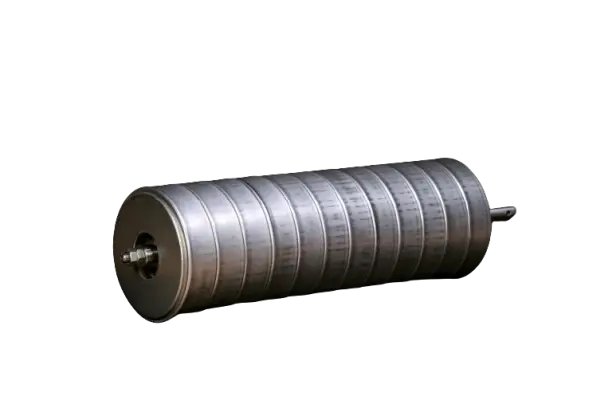

CHAMBER STACK - 4 SERIES

  • Material: SS304( SS316 On request)
  • Available for: 4/12, 4/16, 4/22
  • Bush : Sic/ TC
  • Rated flow : 4m3/Hr

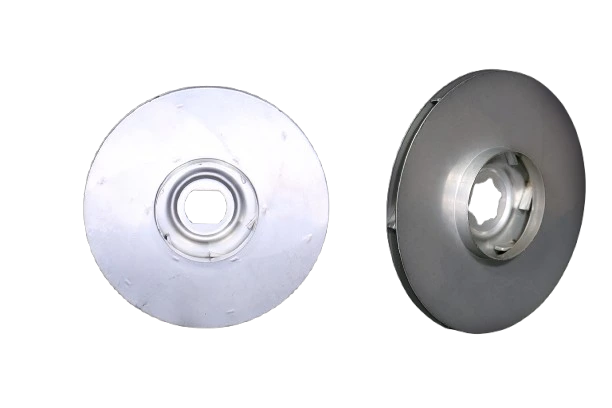

IMPELLER - 2 SERIES

  • Material: SS304( SS316 On request)
  • Suitable for: Keyway type , Hex shafts
  • Outer dia : 73mm
  • Rated flow : 2m3/Hr

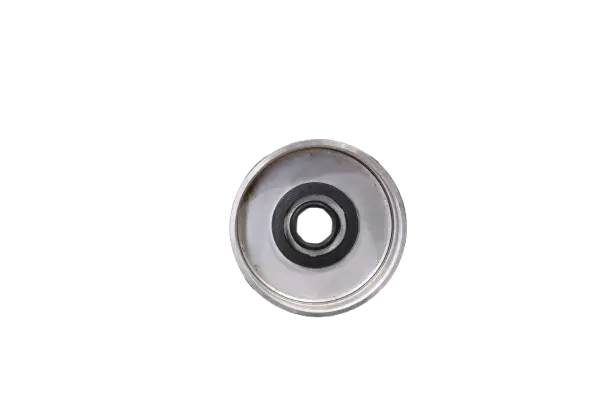

CHAMBER 2 SERIES

  • Material: SS304/Nitrile Rubber/PTFE
  • Length : 22mm
  • Outer Dia : 87mm

BOTTOM CHAMBER - 2 SERIES

  • Material: SS304/Nitrile Rubber/PTFE
  • Suitable for: SP2, SP3, SP5
  • Outer Dia : 87mm

IMPELLER - 3 SERIES

  • Material: SS304( SS316 On request)
  • Suitable for: Keyway type , Hex shafts
  • Outer dia : 73mm
  • Rated flow : 3m3/Hr

CHAMBER 3 SERIES

  • Material: SS304/Nitrile Rubber/PTFE
  • Length : 22mm
  • Outer Dia : 87mm

BOTTOM CHAMBER - 3 SERIES

  • Material: SS304/Nitrile Rubber/PTFE
  • Suitable for: SP2, SP3, SP5
  • Outer Dia : 87mm

IMPELLER - 5 SERIES

  • Material: SS304( SS316 On request)
  • Suitable for: Keyway type , Hex shafts
  • Outer dia : 73mm
  • Rated flow : 5m3/Hr

CHAMBER 5 SERIES

  • Material: SS304/Nitrile Rubber/PTFE
  • Length : 22mm
  • Outer Dia : 87mm

BOTTOM CHAMBER - 5 SERIES

  • Material: SS304/Nitrile Rubber/PTFE
  • Suitable for: SP2, SP3, SP5
  • Outer Dia : 87mm
